Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped

China Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped supplier
Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped supplier Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped supplier Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped supplier Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped supplier

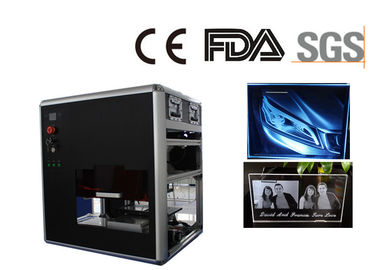

Large Image :  Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped

Product Details:

Place of Origin: China
Brand Name: STN
Certification: CE,FDA
Model Number: STNDP-801AB3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Exporting Plywood Box
Delivery Time: 2 weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 sets / year
Contact Now
Detailed Product Description
Laser Box: Diode Pumped Nd:YAG, 532nmgreen Laser Engraving Speed: 4000HZ
Diode Laser Module Life: >20000 Hours Diameter Of A Point: 20-40μm
Repeated Location Accuracy: <10μm Cooling: Air

Portable 3D Glass Cube Laser Inner Engraving Machine​


Adopting the highly integrated power laser independently developed by STN Laser, the machine owns a variety of advantages such as high resolution, smart operation, good working performance and nice equipment stability. The special own-designed air cooling system can ensure the machine’s continuous working time longer than 24 hours, at the same time keeping the high stability of processing.



Model STNDP-801AB3
Laser Medium: Nd:YAG crystal Diode Pumped 532nm
Laser Frequency: 4000Hz
Engraving Speed 180000-220000 dots/min
Engraving Area (mm): 300*200*100
Dot Diameter: 20-40μm
Resolution: 800-1200 DPI
Motion Control : 1 Galvo+X,Y,Z
Repeated location accuracy: <10μm
Continuous Working Time: >24 hours
Cooling: Air cooling
Lifetime of laser Diode: >20000 hours
Power Consumption: < 800W
Power Supply Connection: Single Phase 220V or 110V (+/-10%), 50Hz or 60Hz
Sound Level: 50db
Warranty of Quality: 2 years on whole machine
Computer: CPU: Dual-Core 3G or similar, 4GB RAM,500GB hard disk
Acceptable File Format: JPG, BMP, DXF etc. The other file formats can be converted to
acceptable file formats by PhotoShop, AutoCAD, 3DMAX etc.
Circumstance Temperature: 5-35℃
Relative Humidity: <70%
Weight: 110kg


Application:
Integrated with high-peak power laser system which developed by STN Laser, For this special size 3d laser engraving machine, which is special designed for the start level customers.Besides the nice 3d engraving service, it also have the ability to engrave middle size of 2d crystals,such as crystal frames,this is very popular for personal 2d photo engraving services

Our Services:
Optional accessories we can offer
A. Professional 3d camera
B. 2d to 3d conversion software
C. Blank crystals
D. Led Bases

Services offered
A. 2 year warranty for whole machine
B. 24 hours online services
C. softwares updating lifetime for free

Training solutions
A. Free on-line training, English training supported
B. Free training in our factory for checking and machine and full training freely 3-5 days full training in our factory freely
C. In site training can be offered if needed.

Our Package and Tranformation:

Portable 4000HZ 3D Laser Glass Engraving Machine Motion Control Diode Pumped
