130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength

I want to publish your team. As an engineer with 10 years of practice (cnc and co2 lasers), I can say you are doing good equipment. Upgrade your software, and can compete with the Germans.

—— Serz

I'm Online Chat Now

130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength

China 130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength supplier
130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength supplier 130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength supplier 130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength supplier

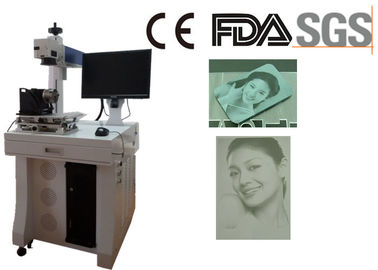

Large Image :  130KG Metal Fiber Laser Engraving Machine with 1064nm Laser Wavelength

Product Details:

Place of Origin: China
Certification: CE
Model Number: STNFL-20W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Price: Negotiable
Packaging Details: Export standard wooden cases
Supply Ability: 1000 sets
Detailed Product Description
Material: Metal Or Non-Metal Laser Lenthwave: 1064nm
Cooling: Air Laser Power: 20W
Size: 110*110mm(Optional) Software: EZcad
High Light:

3d laser marking machine

,

laser marking engraving machine

Raycus 10W / 20W / 30W / 50W Metal Fiber Laser Engraving Machine Price



use to marking/engraving/printing on many type of metal material and some non metallic material with different design text,symbol,pattern,bar code,2D code, serial number, and suitable for online marking.

Mini laser engraving machine can work on the following material:
· Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
· Alloy and metal oxides: Anodized Aluminum
· Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film

Applicate Industry:
· Electrical Engineering and Electrical part and component
· Mobile (Cover,battery,keyboard, I Phone Case)
· Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
· Building materials,PVC pipe
· Car motor car spare part ,Insturment and meters and cutting tool
· plastic case,aviation and aerospace,
· military product,hardware fitting and accessory,sanitary appliance
· food and beverage ,Medicine package and medical instrument,solar Pv industry



Technical parameter
Model No. STNFL-20W
Laser power 20W
Laser wavelength (nm) 1064nm
Pulse energy 0.5@20kHz
Pulse width 100@20
Laser beam quality(M2) <1.5
Light spot diameter(mm) 6-8
Power regulation scope 10%~100%
Cooling system Air cooling
Working temperature(℃) 0~40
Power consumption (W) 400W
Laser source Raycus (IPG for optional)
Software EzCad (JCZ control card )
Support vectorgraph format AI,PLT,DXF,DST etc
Support picture format bmp,jpg,gif,tga,png,tif etc
Support operating system Win7 32bit /Win7 64bit/Win 10
Gross weight 130KG
Packing size 680*940*990mm





Before quotation, would you please let me know some items following?
1. What materials do you want to mark on by our laser engraving machine?
2. What max. marking engraving scope ?
3. How about your expect marking engraving performance?
Then, more details with good price will be sent . Also more industry solution will be supplied.
