Product Details:
Payment & Shipping Terms:
|
Material: | Metal Or Non-Metal | Laser Lenthwave: | 1064nm |
---|---|---|---|
Cooling: | Air | Laser Power: | 10W |
Size: | 110*110mm(Optional) | Software: | EZcad |
Highlight: | laser marking equipment,laser marking engraving machine |

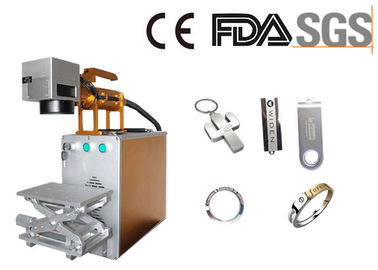

Laser Metal Marker Fiber 20W Portable Laser Marking Machine
use to marking/engraving/printing on many type of metal material and some non metallic material with different design text,symbol,pattern,bar code,2D code, serial number, and suitable for online marking.
Mini laser engraving machine can work on the following material:
· Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
· Alloy and metal oxides: Anodized Aluminum
· Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film
Applicate Industry:
· Electrical Engineering and Electrical part and component
· Mobile (Cover,battery,keyboard, I Phone Case)
· Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
· Building materials,PVC pipe
· Car motor car spare part ,Insturment and meters and cutting tool
· plastic case,aviation and aerospace,
· military product,hardware fitting and accessory,sanitary appliance
· food and beverage ,Medicine package and medical instrument,solar Pv industry
Technical parameter | |
Model No. | STNFL-10W |
Laser power | 10W |
Laser wavelength (nm) | 1064nm |
Pulse energy | 0.5@20kHz |
Pulse width | 100@20 |
Laser beam quality(M2) | <1.5 |
Light spot diameter(mm) | 6-8 |
Power regulation scope | 10%~100% |
Cooling system | Air cooling |
Working temperature(℃) | 0~40 |
Power consumption (W) | 400W |
Laser source | Raycus (IPG for optional) |
Software | EzCad (JCZ control card ) |
Support vectorgraph format | AI,PLT,DXF,DST etc |
Support picture format | bmp,jpg,gif,tga,png,tif etc |
Support operating system | Win7 32bit /Win7 64bit/Win 10 |
Gross weight | 130KG |
Packing size | 680*940*990mm |
Before quotation, would you please let me know some items following?
1. What materials do you want to mark on by our laser engraving machine?
2. What max. marking engraving scope ?
3. How about your expect marking engraving performance?
Then, more details with good price will be sent . Also more industry solution will be supplied.
