Low Noise 3D Subsurface Laser Engraving Machine for Souvenir Shop

I want to publish your team. As an engineer with 10 years of practice (cnc and co2 lasers), I can say you are doing good equipment. Upgrade your software, and can compete with the Germans.

—— Serz

I'm Online Chat Now

Low Noise 3D Subsurface Laser Engraving Machine for Souvenir Shop

China Low Noise 3D Subsurface Laser Engraving Machine for Souvenir Shop supplier
Low Noise 3D Subsurface Laser Engraving Machine for Souvenir Shop supplier Low Noise 3D Subsurface Laser Engraving Machine for Souvenir Shop supplier

Large Image :  Low Noise 3D Subsurface Laser Engraving Machine for Souvenir Shop

Product Details:

Place of Origin: China
Certification: CE FDA
Model Number: STNDP-801AB4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: strong alnico box
Delivery Time: 2 weeks
Supply Ability: 1000 sets / year
Detailed Product Description
Photo: 3D Material: Glass And Crystal
Laser Box: 532nm Cooling: Air
Warranty: 2 Years Speed: 4000HZ
Highlight:

3d laser subsurface engraving machine

,

subsurface engraving machine

Glass Crystal 3d Photo Laser Engraving Machine for Souvenir Shop

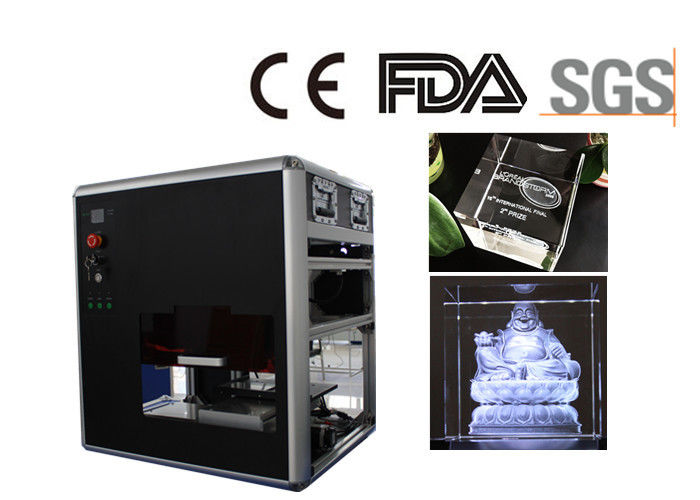

STNDP-801AB4 is our small model crystal laser engraving machine, which is specially designed for entry level business.

With compact size and portable design, STNDP-801AB4 is the most practical and cost-effective model, suitable for personalized 2d/3d crystal gifts business in shopping malls, airports, tourist attractions etc..
Adopting the highly integrated and high-peak power laser developed by STN Laser, the machine can engrave in high speed, which ensures consumers get the customized crystal products in just a few minutes. The special own-designed air cooling system can ensure the machine’s continuous working time longer than 24 hours, at the same time keeping the high stability of processing.



Model STNDP-801AB4
Laser Medium: Nd: YAG crystal Diode Pumped 532nm
Laser Frequency: 4000Hz
Engraving Speed 180000-220000 dots/min
Engraving Area (mm): 300*400*100
Dot Diameter: 20-40μm
Resolution: 800-1200 DPI
Motion Control : 1 Galvo+Y, Z
Repeated location accuracy: <10μm
Continuous Working Time: >24 hours
Cooling: Air cooling
Lifetime of laser Diode: >20000 hours
Power Consumption: < 800W
Power Supply Connection: Single Phase 220V or 110V (+/-10%), 50Hz or 60Hz
Sound Level: 50db
Warranty of Quality: 2 years on whole machine
Computer: CPU: Dual-Core 3G or similar, 4GB RAM,500GB hard disk
Acceptable File Format: JPG, BMP, DXF etc. The other file formats can be converted to
acceptable file formats by PhotoShop, AutoCAD, 3DMAX etc.
Circumstance Temperature: 5-35℃
Relative Humidity: <70%



Application:

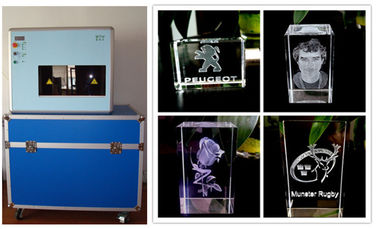

Integrated with high-peak power laser system which developed by STN Laser, For this special size 3d laser engraving machine, which is special designed for the start level customers.Besides the nice 3d engraving service, it also have the ability to engrave middle size of 2d crystals,such as crystal frames,this is very popular for personal 2d photo engraving services

Our Services:
Optional accessories we can offer
A. Professional 3d camera
B. 2d to 3d conversion software
C. Blank crystals
D. Led Bases

Services offered
A. 2 year warranty for whole machine
B. 24 hours online services
C. softwares updating lifetime for free

Training solutions
A. Free on-line training, English training supported
B. Free training in our factory for checking and machine and full training freely 3-5 days full training in our factory freely
C. In site training can be offered if needed.
