Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated

I want to publish your team. As an engineer with 10 years of practice (cnc and co2 lasers), I can say you are doing good equipment. Upgrade your software, and can compete with the Germans.

—— Serz

I'm Online Chat Now

Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated

China Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated supplier
Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated supplier Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated supplier Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated supplier Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated supplier

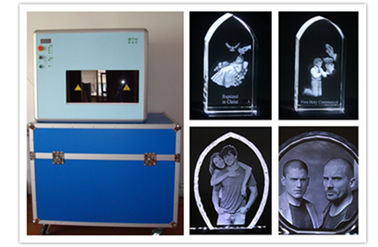

Large Image :  Small Air Cooling Gift Engraving Machine for Glass and Crystal CE / FDA Certificated

Product Details:

Place of Origin: China
Certification: CE,FDA
Model Number: STNDP-801AB4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: strong alnico box
Delivery Time: 2 weeks
Supply Ability: 1000 sets / year
Detailed Product Description
Size: 400*300*100mm Material: Glass And Crystal
Cooling: Air Laser Box: Diode Pumped 532nm
Speed: 4000HZ Photo: 2D/3D
Highlight:

3d laser engraving system

,

3d laser engraving equipment

Gift Engraver Machine 3D Laser Printing Machine For The Small Home Business



STNDP-801AB3 is our middle scale crystal subsurface engraving machine, mainly used for producing customized 2D&3D crystal gifts and souvenirs, glass crafts, wedding photo frames, crystal trophies and awards.

With the ability of batch production, STNDP-801AB3 is very popular in photo studios, gift and craft shops, trophy and award companies.

Adopting the highly integrated power laser independently developed by STN Laser, the machine owns a variety of advantages such as high resolution, smart operation, good working performance and nice equipment stability. The special own-designed air cooling system can ensure the machine’s continuous working time longer than 24 hours, at the same time keeping the high stability of processing.





Model STNDP-801AB4
Laser Medium: Nd:YAG crystal Diode Pumped 532nm
Laser Frequency: 4000Hz
Engraving Speed 180000-220000 dots/min
Engraving Area (mm): 300*200*100
Dot Diameter: 20-40μm
Resolution: 800-1200 DPI
Motion Control : 1 Galvo+X,Y,Z
Repeated location accuracy: <10μm
Continuous Working Time: >24 hours
Cooling: Air cooling
Lifetime of laser Diode: >20000 hours
Power Consumption: < 800W
Power Supply Connection: Single Phase 220V or 110V (+/-10%), 50Hz or 60Hz
Sound Level: 50db
Warranty of Quality: 2 years on whole machine
Computer: CPU: Dual-Core 3G or similar, 4GB RAM,500GB hard disk
Acceptable File Format: JPG, BMP, DXF etc. The other file formats can be converted to
acceptable file formats by PhotoShop, AutoCAD, 3DMAX etc.
Circumstance Temperature: 5-35℃
Relative Humidity: <70%
Weight: 115kg



Application:
Integrated with high-peak power laser system which developed by STN Laser, For this special size 3d laser engraving machine, which is special designed for the start level customers.Besides the nice 3d engraving service, it also have the ability to engrave middle size of 2d crystals,such as crystal frames,this is very popular for personal 2d photo engraving services

Our Services:
Optional accessories we can offer
A. Professional 3d camera
B. 2d to 3d conversion software
C. Blank crystals
D. Led Bases

Services offered
A. 2 year warranty for whole machine
B. 24 hours online services
C. softwares updating lifetime for free

Training solutions
A. Free on-line training, English training supported
B. Free training in our factory for checking and machine and full training freely 3-5 days full training in our factory freely
C. In site training can be offered if needed.
