Payment & Shipping Terms:
|Material:||Metal||Max Working Size:||3000*1500mm|
|Cutting Speed:||1-50000mm/min||Working Gas:||Air,O2,N2|
metal laser cutter,
cnc laser cutter

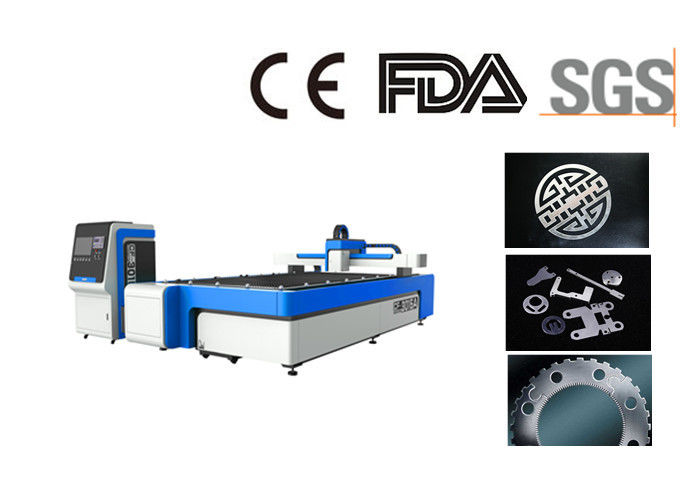

Distributor Wanted China Small Fiber Laser Metal Cutting Nachine CNC
STN fiber laser cutting machine is adopt with 500W-3000W power fiber laser of domestic well-known laser manufacturer Raycus.CNC fiber laser cutting machine is precision machinery with CNC technical laser cutting & other disciplines in One of the high-tech products, mainly for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and so on. Metal processing industry is the preferred cutting model.
Fiber laser unique advantages:
electro-optical conversion efficiency up to 30% -40%;
Extremely excellent pulse power / energy stability
long life, high precision, pump life> 100,000 hours;
faster, the effect is more perfect;
beam quality optimization in the application;
air-cooled compact structure design or water cooling as an optional;
Professional for cutting a variety of thin metal plate, high quality cutting 0.1 ~ 20 mm for carbon steel plate, 0.1 ~ 10 mm for stainless steel plate, but also cutting aluminum plate, galvanized plate, electrolytic plate, silicon steel, titanium, Metal materials.
Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, construction machinery, locomotive manufacturing, agroforestry, elevator manufacturing, special vehicles, household appliances manufacturing, tooling, IT manufacturing, petroleum machinery manufacturing, food machinery, diamond tools Welding, gear welding, surface treatment of metal materials, decorative advertising, laser processing services and other processing industries.
|Rate of Whole Machine||≤10KW||≤15KW||≤25KW||≤35KW|
|Effective Cutting Area||3000mm×1500mm|
|Transmission Mode||Rack & Gear with Japanese Panasonic/Fuji Servo Motors & Drives|
|Quantity of Rack||1000mm×8||1000mm×8||1000mm×16||1000mm×16|
|Cutting speed(depend on material)||1-30000mm/min||1-40000mm/min||1-50000mm/min||1-50000mm/min|
|Idle Running Speed(Max)||55000mm/min||70000mm/min|
|X/Y repeat positional accuracy||±0.03mm|
|X/Y Maximum acceleration||1.0G|
|X/Y positional accuracy||±0.02mm|
|Net weight of Whole Machine||2000KG||3500KG||3500KG||3500KG|
|Maximum loading capacity||500KG||500KG||800KG||1000KG|
|Z axis lifting distance||100mm||150mm|
|Total power protection level||IP54|
|Support graphics format||G CODE,NC,ENG,DXF,PLT, DWG ETC(support AutoCAD software,Coreldraw software)|
|Alarm positioning||Red light instruction|
Our Factory Show:
Production time: 20 working days delivery from our factory days after received the deposit
Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.
Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using & adjusting. (Recommend)
B. You can come to STN factory for training.STN will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period.Training Time: 3 working days.
C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.Standard training Time: 3 working days,we will charge extra USD100.0/day if you need to prolong the service date.
Remark: The charge of visa application ,round air tickets and accommodation expenses in your country will burden by your side.
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of your destination. Except the damage artificially ,we are responsible for offering the fittings free of charge during the guarantee period, in any case ,we need that you send the damaged fittings by courier with your charge if we need it for repair or back up ,we will send you the alternative fittings at the first time you need it. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
